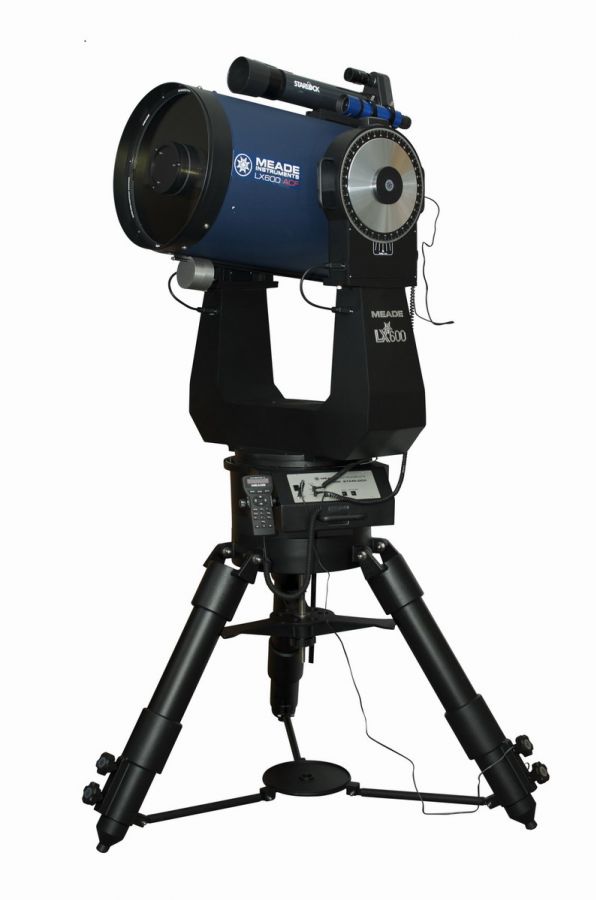

MEADE LX600-ACF 16" F/8 se stativem
- 16" f/8 Advanced Coma Free Optics - 3251mm focal length
- Ultra-High Transmission Coatings (UHTC)
- Crayford Focuser
- StarLock automatic guider
- AutoStar II GOTO system
SeriesLX600 Telescopes
UPC709942502046
Experience LevelAdvanced
Clear Aperture16"
Optical DesignAdvanced Coma-Free (ACF)
Optical CoatingsUHTC™
Focal Length1000mm
Focal Ratio8.7
Resolving Power (Dawes' Limit).285 arcseconds
OTA Cooling FanYes
Oversized Primary MirrorYes
Mirror LockYes
Viewfinder8x50mm with cross-hair reticle
Eyepiece(s)MWA 21mm
Focuser MechanismInternal Crayford Style, Zero, Image-Shift Primary Mirror Focus with Dual Speed 7:1 Control
DiagonalSeries 5000 2" Enhanced Diagonal
Hand ControllerAutoStar® II
Object Database145,000 objects
Pointing Precision (High-Precision Mode)+/- 1 arcminute
Periodic Error CorrectionBoth Axes
Permanent Periodic Error Correction (PPEC)Yes
StarLock™Yes
Typical Guiding Performance with StarLock< 1 arc-second
Slow Motion ControlsMechanical & Electronic
Slew SpeedsRA and Dec: 0.01x to1.0x sidereal, variable in 0.01x increments; 2x, 8x, 16x, 64x, 128x sidereal; 1°/sec. to 2°/sec., variable in 0.1° increments.
Tracking RatesSidereal, Lunar, or custom-selected from 2000 incremental rates
Control Panel12v DC in, 12v DC out, Power, Focuser, Reticle, Handbox port, 2x computer connection ports (RS232), 1 Aux guide port
TripodMAX Tripod
Power Source(Optional) 12v DC, 5 amp Meade Universal Power Supply
Batteries (User-Supplied)8 x C cells
GPS ReceiverYes
Time ChipYes
Electronic FocuserOptional
Smart Mount™Yes
Smart Drive™Yes
Anti-vibration PadsIncluded
WedgeOptional
