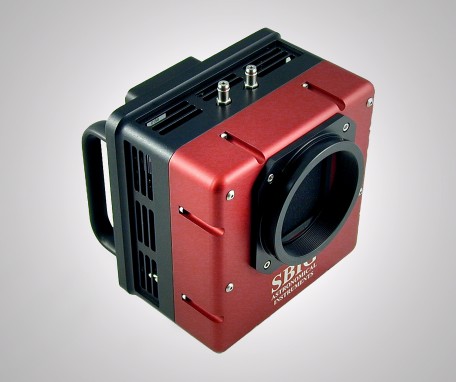

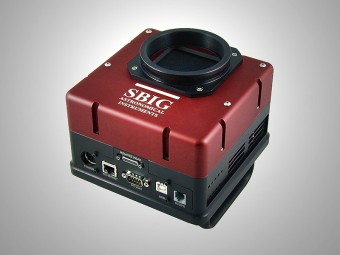

Sbig STXL-6303E, CCD kamera

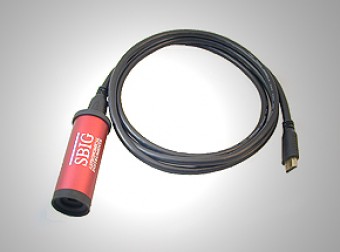

K dispozici je také nová autonaváděcí kamera STT/STXL/STX Remote Guide Head s připojovacím konektorem HDMI. Lze ji využít jako externí navigační kameru pro SBIG série STT, STXL a STX a používat tak oddělené navigace s navigačním dalekohledem, nebo objektivy, nebo s OAG. Externí pointační kamera (Remote Guide Head (RGH)) obsahuje stejný jednobarevný čip CCD KAI-0340, který je používaný v samo naváděcích filtrových karuselech pro STT a STXL kamery a duplikátní vnitřní navigaci v kameře STX. Stejný čip CCD je používaný v ST-i pointační a planetární kameře.

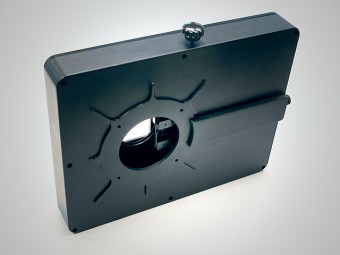

Pro pointaci lze také použít filtrový karusel FW8G-STXL se samonaváděním, který zahrnuje čočkový telekompressor a naváděcí CCD čip KAI-0340, a to dovolí nastavení na požadovanou filtrovou pozici a ohniska se zajištěním polohy zaostření uzamčením. Umožňuje tak pointaci se snímáním světla hvězd mimo filtry při astrofotografii.
Typical Specifications
Imaging CCD............................................................................Truesense KAF-6303E
Imaging/Pixel Array.................................................................3072 x 2048 pixels @ 9u
CCD Size.........................................................................................27.65 x 18.48 mm
Total Pixels.................................................................................................6.3 Million
Pixel Size................................................................................................9 x 9 microns
Full Well Capacity........................................................................................100,000 e-
Dark Current e/p/s at 0 C................................................................0.3e-/pixel/sec at 0C
Antiblooming.............................................................................................NABG Only
Peak QE..............................................................................................................68%
Shutter............................................................................Mechanical, Even-illumination
Exposure............................................................................0.12 to 3600 seconds, 10ms
Correlated Double Sampling....................................................................................Yes
A/D Converter.....................................................................................................16 bit
A/D Gain...................................................................................................1.47e-/ADU
Read Noise.....................................................................................................11e- rms
Binning Modes............................................................................1x1, 2x2, 3x3, 9x9, x n
Pixel Digitization Rate...............................................................1.8 Megapixels / Second
Full Frame Download.....................................................................................4 Seconds
Focus Mode..................................................................................................~1 second
Cooling Delta....................................................................................-60C with air only
Temperature Regulation.....................................................................................±0.1°C
Power........................................................................................12VDC at 6 amps max
Computer Interface......................................................................USB 2.0 and Ethernet
Computer Compatibility...................................................................Windows 32 / 64 bit
Dimensions............................................6 x 6 x 3.5 in. Excluding fan 152 x 152 x 76mm
Mounting..........................................................................3" Threaded Accessory Plate
Weight................................................................................................4.5 pounds / 2kg
Backfocus..................................................................................0.98 inches / 24.8 mm
Filter Wheel Option...................................................................................FW8S-STXL
Self-Guiding Filter Wheel..........................................................................FW8G-STXL
Filter Size.................................................................................................50mm round
Adaptive Optics Option........................................................................................AO-X
Remote Guide Head......................................................................................RGH-STT
Lens Adapter................................................................................Nikon or Canon EOS
OAG Option............................................................................................................n/a
